Introduction

In industries like petroleum, petrochemicals, and natural gas, maintaining piping system integrity is vital. The API 570 standard serves as a critical regulatory framework to ensure the safety, reliability, and longevity of in-service piping systems. A significant challenge in this field is Corrosion Under Insulation (CUI), a concealed yet highly destructive problem.​

ARIX Technologies is at the forefront of advanced robotic inspection solutions, helping industries streamline API 570 compliance while tackling CUI challenges efficiently. This article explores the importance of API 570, how it helps mitigate CUI, and how innovative robotic inspection technologies can improve piping integrity management.

What is API 570?

API 570, titled "Piping Inspection Code: In-Service Inspection, Rating, Repair, and Alteration of Piping Systems," was first published by the American Petroleum Institute (API) in 1993. It establishes the inspection, repair, and rerating protocols for metallic and fiberglass-reinforced plastic (FRP) piping systems in industries handling hazardous, flammable, or toxic fluids.

🔹 Why API 570 Matters: Safety, Compliance, and Cost Savings

Failing to comply with API 570 can lead to leaks, explosions, regulatory fines, and environmental damage. Proper inspection and maintenance reduce:

🔥 Risk of Pipe Failures & Catastrophic Accidents
📉 Unplanned Downtime & Costly Repairs
🛡️ Regulatory Violations & Legal Issues

🔎 Example: In 2018, a CUI-related failure in a refinery led to a $2M fine due to lack of API 570 compliance.

🔹 Applicability

• Refineries and chemical processing plants
• Natural gas processing facilities
• Petrochemical industries
• Power plants and heavy industries

🔹 Key Elements of API 570 Compliance

🛡️ In-Service Inspection and Maintenance

API 570 requires regular inspections to assess corrosion, erosion, and mechanical integrity. These inspections must be conducted by API 570-certified inspectors, using techniques such as:

• Visual inspections (VT)
• Ultrasonic Thickness Testing (UTT)
• Radiographic Testing (RT)
• Pulsed Eddy Current (PEC)
• Magnetic Particle Testing (MT)
• Dye Penetrant Testing (PT)

🛡️ Corrosion Rate Calculations

API 570 emphasizes calculating corrosion rates to determine inspection intervals and predict potential failures. Inspectors should be skilled in:​

• Measuring thickness loss over time
• Estimating remaining life of piping
• Setting appropriate re-inspection intervals



🛡️ Repairs, Alterations, and Rerating

API 570 outlines best practices for repairing or modifying existing piping systems, ensuring that all alterations:

• Maintain structural integrity
• Comply with welding and fabrication codes
• Adhere to industry safety standards

The standard also governs rerating, which involves modifying pressure or temperature limits without physical changes to the piping system.

🔹 API 570 Inspection Intervals & Best Practices

📅 How Often Should API 570 Inspections Be Performed?

Best Practices for API 570 Compliance

What is Corrosion Under Insulation (CUI)?

🔹 Understanding the Hidden Threat of CUI

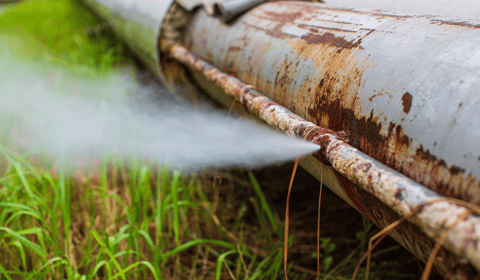

Corrosion Under Insulation (CUI) is a severe form of localized corrosion that occurs beneath insulation materials on piping and equipment. It remains undetected until insulation is removed, making it one of the most costly and dangerous issues in industrial facilities.

🛠️ Causes of CUI

CUI is caused by:

• Trapped moisture from rain, condensation, or steam leaks
• Temperature fluctuations (25°F – 250°F for carbon steel, 150°F – 400°F for stainless steel)
• Poor insulation sealing
• Chemical exposure from acids, caustics, or industrial pollutants

🛠️ Consequences of CUI

• Severe metal loss leading to pipe failure
• Increased maintenance costs and downtime
• Safety hazards including leaks, fires, and explosions
• Regulatory non-compliance leading to penalties

API 570 provides clear guidelines for detecting and preventing CUI, but traditional inspection methods are labor-intensive and costly. This is where advanced robotic inspection technologies come in.

🔹 How ARIX Technologies’ Advanced Inspection Platforms Address API 570 & CUI Challenges

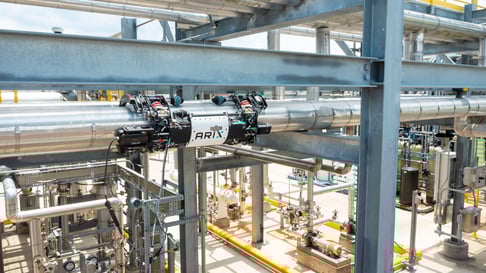

🤖 Robotic Inspection for CUI Detection

Traditional manual inspections require removing insulation, which is expensive and time-consuming. ARIX Technologies’ robotic solutions use Non-Destructive Testing (NDT) methods to detect CUI without removing insulation, reducing costs and improving efficiency.

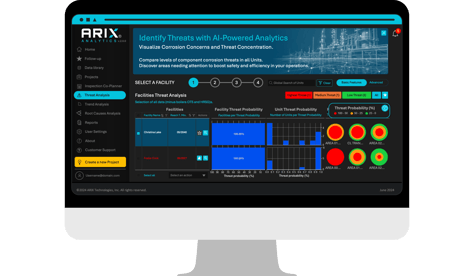

🤖 AI-Powered Predictive Analytics

Our AI-driven platforms analyze real-time corrosion data, providing:

• Automated corrosion rate predictions
• Optimized inspection schedules
• Risk-based inspection (RBI) recommendations

This allows companies to proactively manage their assets and prevent failures before they occur.

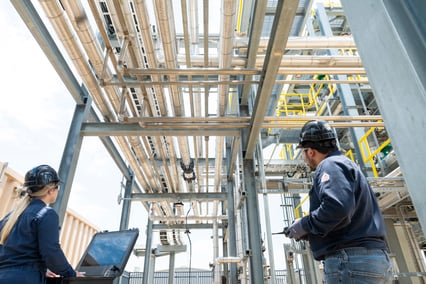

🤖 Remote & Semi-Autonomous Inspections

• Safer inspections in hazardous environments
• Reduced human risk exposure
• Lower inspection downtime

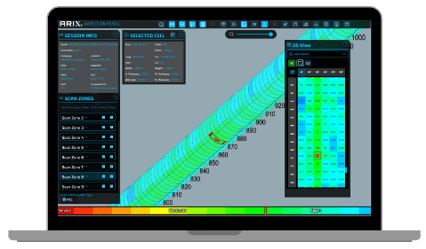

🤖 Digital Twin Technology for API 570 Compliance

ARIX Technologies integrates digital twin technology, allowing companies to:

• Visualize corrosion trends over time
• Simulate maintenance scenarios
• Ensure accurate compliance reporting

🔎 Case Study: Petromax Refining Achieves 7x Faster, 37% Cheaper CUI Inspections with ARIX Robotics

🔗 READ THE CASE STUDY

🔹 Best Practices for API 570 and CUI Management

✔️ Implement a Risk-Based Inspection (RBI) Strategy

API 570 allows companies to prioritize inspections based on risk factors, ensuring high-risk piping receives frequent and thorough evaluations.

✔️ Adopt Predictive Maintenance with AI & Machine Learning

Leveraging AI-driven analytics helps predict CUI-prone areas and schedule inspections before failures occur.

✔️ Utilize Robotics for Safe and Cost-Effective Inspections

Replacing manual insulation removal with robotic, non-invasive inspections significantly reduces labor costs and downtime.

✔️ Conduct Regular Training for API 570 Compliance

• CUI detection and prevention
• API 570 compliance protocols
• NDT techniques for accurate assessments

✔️ Leverage Digital Twins for Data-Driven Decision Making

Using digital twin models allows for real-time monitoring and historical trend analysis, enhancing predictive maintenance strategies.

🛡️ Mitigation Strategies:

1. Material Selection: Using insulation materials with low water retention and high thermal efficiency can reduce the risk of Corrosion Under Insulation.

2. Protective Coatings: Applying high-quality coatings to the metal surface before insulating can provide an additional barrier against moisture.

3. Design Improvements: Ensuring proper design and installation of insulated systems to minimize water ingress and facilitate drainage.

🔹 Conclusion

API 570 serves as the foundation for ensuring the safety and integrity of piping systems, with Corrosion Under Insulation (CUI) posing significant challenges in industrial maintenance.​

By adopting advanced robotic inspection platforms, companies can enhance compliance, reduce costs, and improve safety. ARIX Technologies leads in AI-driven, automated inspection solutions, offering a future-proof approach to API 570 compliance and CUI management.

Are you ready to revolutionize your inspection process and stay ahead of API 570 regulations? Contact ARIX Technologies today to learn how our cutting-edge robotic inspection solutions can transform your maintenance strategy.
